With a range that can reach of up to 300 km, the Renault Master City Bus H2-TECH" can carry up to 15 passengers (9 seated, 6 standing) with easy and safe access for people with reduced mobility (low, flat floor + PRM access ramp).

Manufactured in France and based on the Renault Master H2-TECH, the City Bus is a zero emission and quiet vehicle, coupling to an electric powerrtrain from the Renault's technology and a hydrogen system from the HYVIA's technology, both integrated by PVI.


The City Bus H2-TECH is equipped with a state of the art 30 kW fuel cell, a 33 kWh Li-Ion traction battery and a tank containing 4.5 kg of hydrogen at 350 bar. The total on-board energy capacity is 100 kWh.


  • Refuelling time 5 minutes

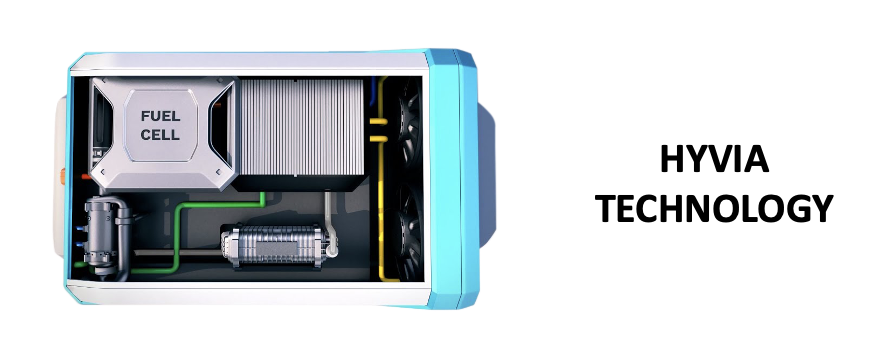

  • Hydrogen technology from HYVIA

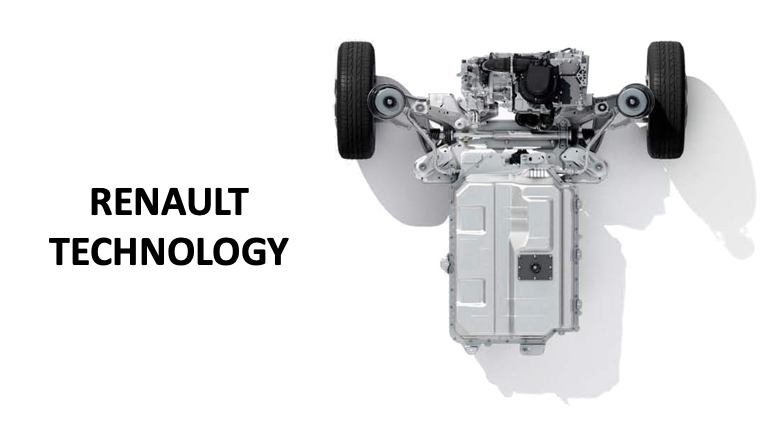

  • Electrical technology from Renault
  • Range up to 300 kms
  • 15 passengers (with 10 seats)
  • Length : 6 meters
  • Width : 2 meters (without mirrors)
  • Renault PRO+ maintenance in Europe
  • "A la carte" funding including or not full maintenance contracts



It is perfectly suited to the needs of companies, municipalities and local public services involved in urban passenger transport.

The CITYBUS H2-TECH is distributed throughout Europe via a network of distributors who also manage the maintenance of PVI buses through the Renault PRO+ network.


OVERALL TECHNICAL SPECIFICATIONS

DIMENSIONS
  • Basic chassis : Renault Master E-TECH electrified at PVI
  • External length 6225 mm
  • External width with/without external mirrors 2470 / 2070 mm
  • External height 2750 mm
  • Internal length for passengers 3530 mm
  • Internal width Front/between wheel arches 1880 / 1300 mm
  • Internal height Front/Rear 1900 / 1800 mm
  • Large windows (10 m2)
  • Floor height Front/Rear 250 / 350 mm (integral low floor)
  • Front overhang 869 mm
  • Rear overhang 1024 mm
  • Turning radius between kerbs 7,85 m
  • Turning radius 8,1 m
MASS
  • GVW 4500 kg
  • Front axle capacity (min/max) 1650 / 1850 kg
  • Rear axle capacity (min/max) 1500 / 2800 kg
  • Payload 1050 kg
PERFORMANCE
  • Range up to 300 kms
  • Maxi start-up gradient @ Empty/GVW 20%/15%
  • Max speed 70 km/h (electronic limitation)
  • H2 consumption : 2 KG H2/100 kms.
  • H2 refuelling time: 5 minutes.
